Quick Details
Application: Laser Engraving
Condition: New
Laser Type: CO2
Engraving Area: 1000*600mm
Engraving Speed: 1000mm/s
CNC or Not: Yes
Cooling Mode: Water Cooling
Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin: Shandong, China (Mainland)
Brand Name: Dowell
Model Number: 1060
Dimension(L*W*H): 1050x750x600mm
Certification: CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided: Engineers available to service machinery overseas

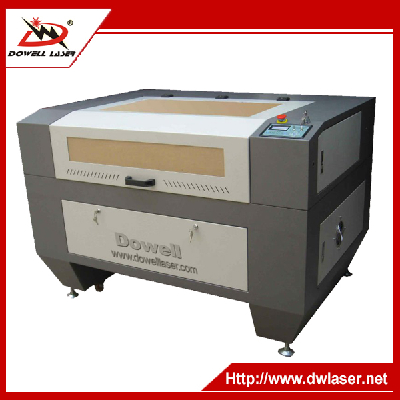

Name: 1060 CO2 laser engraving and cutting machine
Laser power: 60w/80w/100w/130w/150w
Laser tube: RECI Brand
Type: Water Cooling CO2 Laser Engraving Machines
Control Software: Speedy DSP
Driving system: Servo Motor
Power supply: 220V/50HZ
Function: Cutting Nonmetal Materials
Warranty: 1 Year,except consumable goods
Packaging & Delivery
| Packaging Details: | plywood case |
|---|
| Delivery Detail: | within 15 working days |
|---|
Product Description
Product Application
Applicable Material :Acrylic, wood planks(light planks, candlenut), bamboo ware, double color sheets, paper, leather, ox horns, resin, animal grease, ABS board, lampshade, and other non-metal material.
Applicable Industry :Advertisement,decoration,arts and crafts,model industry(construction models, avation and navigation models and wooden toys),packing,etc
|
Model | 6040/6090/1060/1390 |
Laser power | 60w/80w/100w/150w |
Woking Area | 600*400mm/600*900mm/1000*600mm/1300*900mm |
Cutting Speed | 0-500mm/s |
Engraving speed | 0-1000mm/s |
Positioning Precision | ≤±0.01mm |
Interface | USB |
Running environment | Temperature: 0-45°, Humidity:5%-95% |
Warranty | One year, except the consumable parts |
Main Features
1.Combines the XY610*925mm CNC institutions with diode YAG&CO2 laser marking technology in one.
2.Can engrave the letter ,icons and pictures with high speed in 1.2m/s.
3.Oversized working table could achieve mass production,regular marking machine is unable.
4.Red-light position for quickly and accurately adjustment,auto focus ensure the precise engraving.
5.Front and back opening design,width infinity material-feeding,easy to dismantle and adjust the workpiece.
6.Can be engraving precisely on any metal and non-metal metarials.
7.Can be easy placed at office,store or workshop.
Packing & Delivery
1.Durable plyooden case or as per required.
2.The delivery lead time would be 12-15 working ddays after recieving the payment.
3.As for the wholesalers/distributors,we could send the cargo by air,by sea or by railways via reliable forwarder.
Our Company
Jinan Dowell Laser Equipment Co.,ltd. (the former Wuhan Dowell Laser), with 12 years production experience, specialized in laser cutting, marking equipment production, developing and sales, and procide customers with comprehensive solutions, compare to same industry, we hold less autonomy R& D companies. Company's full range of products have passed CE, FDA and others international certification.
Since established of our company, now there are more than 130 technicist and 20 research personnels after continuous improvement of management. Our company occupy 3000 square meters of modern workshops, located in the Xinxu Industrial Zone of Tianqiao District, Jinan City with traffic convenient. We have established more than 20 agencies all over China, such as Guangzhou, Shanghai, Beijing, Zhejiang, Fujian, etc. We have established agent relations covering 30 countries and areas. Our products are exported to more than 60 countries and areas all over the world, including America, Russia, Germany, Turkey, Southeast Asia etc.
High quality is our forever pursuit,we adopt original imported components,advanced manufacturing technology,large mass production and high standard testing.Perfect after sale service,won customer's trust and support."Customer first,credit first" is our highest faith,through our persistent effort,we believe we will build a brilliant with you!
