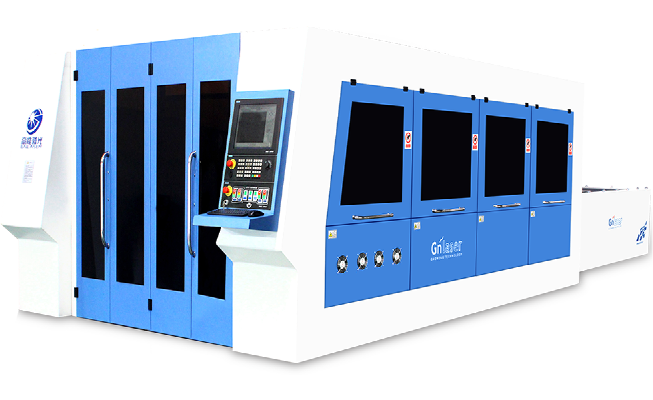

DW3015 fiber laser cutting machine

DW3015 fiber laser cutting machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20 Sets per Month
  • Port: QingDao
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-04-23
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  16
  • Place of Origin:  Jinan,china,
  • Brand Name:  Dowell
  • Model Number:  DW3015
  • Weight: 4000.000 kg

Product Description

1530 IPG fiber laser cutting machine adopts most sophisticated fiber laser(German IPG fiber laser maker), combining self-design high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision and fast speed HIWIN linear guide and ball screw.It also Attached Japan Panasonic drivers.

This machine can cut any metal plates and metal pipes with high speed and high precision.High quality create longer lifetime and the stable software makes machine can cut patterns with any shape.It is easy to control and use,save your time and energy.Excellent technical support make the price very competitive.



Product Features and high lights

1) IPG Fiber laser system,good optical patch,smaller gap,high precision.

2) Imported cutter head,keep laser focus stable distance.

3) Double liner guide,ball screw transmission,higher speed,high precision and high performance.

4) Auto-importing drawing to process,manual setting program is unnecessary.

5) Automatism following cutter head with capacitance model,moving without touch material directly,keep laser focus stable distance.

6) Adopt double linear guide position method,ball screw transmission,high speed,high precision,stable moving performance.

7) Could be auto-importing drawing to process,manual setting program is unnecessary.

8) With well-known laser maker IPG and other parts like HIWIN linear guide,longer life for using.

9) Different design for choose,we can provide suitable plan for you.

10) Easy to control and use.


  • Size:  16
  • Place of Origin:  Jinan,china,
  • Brand Name:  Dowell
  • Model Number:  DW3015
  • Weight: 4000.000 kg

Maximum output laser power

200w,300w,500w,750w1000W,1200w,1500w,2000w

Laser wavelength

1064nm

Cutting area

1500*3000mm or 1300*2500mm

Cutting thickness

<=20mm

Cutting speed

 8m/min(3mm carbon steel)

Cooling mode

Water cooling

Power requirements

380V/50HZ/60HZ/60A

Min.line.width

0.01mm

Repeat positioning accuracy

Tolerance 0.01mm

File formats

PLT, AI, BMP, DST, DXF,DMG,GIF,JPEG

Laser power control

1-100% controls inside program

Certifications

CCC,CE,GS,ISO,SGS
