- Size: 1250*1650mm
- Place of Origin: Shandong, China
- Brand Name: Dowell
- Model Number: DW 1318
- Weight: 1500.000 kg
Feature
1.Gantry structure, stable working, small floor space required for machine.
2.Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf precision.
3.Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4.Highly effective smoke exhausting system coming with optimized dust collector device to create healthy environment for operator.
Main Description
1)Laser tube GSI metal Laser Tube 300W, stable and long life span
2)servo motor with Driver
3)Laser Head : up&down With Cooling System(Lens & Mirror are water cooling)
auto-following system.
4)Fume sucking system: Blower 100% Fume Suck
5)Die Board Machine Body :Steel Fabricated Structure With Lath Bed with tempering heat treated
6)Machine Heavy Duty Structure: 1500 KG min
7)XYZ Axis Square Guide & Block, Ball Screw (Set) :- HIWIN (Made In Taiwan)
8)Electric Component (Power supply, Switch, Control Board) :- Schneider (Made In Germany)
9)Total Cutting quality require perpendicular 90 degree: Accuracy( /- 2 Degree)
10)Cutting Cerf selection is automatically by Software During Single Drawings multi selection done automatic.
( Beam spot dia. Are define as PT1.2 = 0.45 mm, PT2 = 0.71mm , PT3=1.07mm )
11)Lubrication Systems for all ball screws and rails blocks, bearings.
12)Supporting Format: CF2, DXF, DWG, Coral Open CDR, EPS, PSD, PLT, etc

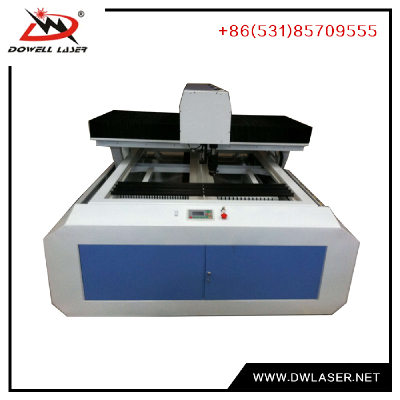

Die Board Laser Cutting Machine DW 1318 | |
Laser-type | GSI laser tube / Hermetic and detached CO2 laser tube |
Laser-power | 400W |
Cooling Mode | Circulating-water-cooling |
Power Adjustment | 0-100% controlling, no segment and adjusting by software |
Machine Control and Drive | Speedy DSP controlling, Servo motor |
Max Engraving Speed | 3600mm/min |
Cutting precision | ±0.02mm |
Up-down Distance of Laser Head | 80mm |
Working Area | 1250*1650mm 1250*1750mm 1600*1600mm |
Machine G.W. | 1500KG |
Working Voltage | AC220V±10% 50Hz (optional 380V or 110V) |
Working Environment | Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language | English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD, CoreDraw direct outputting |
Packaging | Plywood box |
Machine Color | Red&grey / blue&white / optional |
Delivery Time | 30 working days |
Payment | T/T |
