Feature

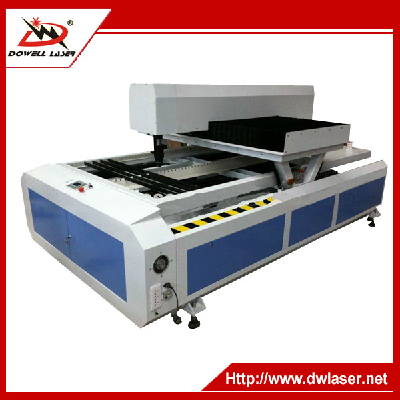

1.Gantry structure, stable working, small floor space required for machine.

2.Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf precision.

3.Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.

4.Highly effective smoke exhausting system coming with optimized dust collector device to create healthy environment for operator.

Main Description

1)Laser tube GSI metal Laser Tube 300W, stable and long life span

2)servo motor with Driver

3)Laser Head : up&down With Cooling System(Lens & Mirror are water cooling)

auto-following system.

4)Fume sucking system: Blower 100% Fume Suck

5)Die Board Machine Body :Steel Fabricated Structure With Lath Bed with tempering heat  treated

6)Machine Heavy Duty Structure: 1500 KG min

7)XYZ Axis Square Guide & Block, Ball Screw  (Set) :- HIWIN (Made In Taiwan)

8)Electric Component (Power supply, Switch, Control Board) :- Schneider (Made In Germany)

9)Total Cutting quality require perpendicular 90 degree: Accuracy( /- 2 Degree)

10)Cutting Cerf selection is automatically by Software During Single Drawings multi selection done automatic.

( Beam spot dia. Are define as PT1.2 = 0.45 mm, PT2 =  0.71mm ,   PT3=1.07mm )

11)Lubrication Systems for all ball screws and rails blocks, bearings.

12)Supporting Format: CF2, DXF, DWG, Coral Open CDR, EPS, PSD, PLT, etc
